Boltless

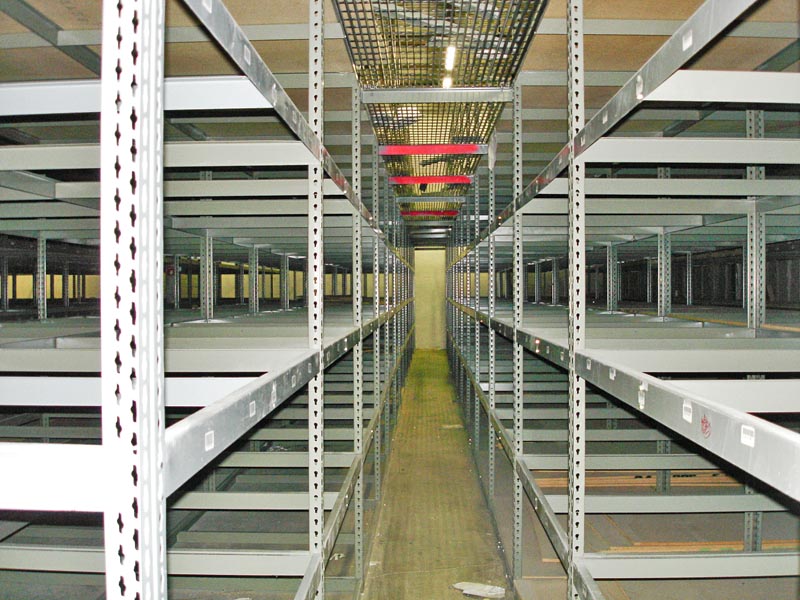

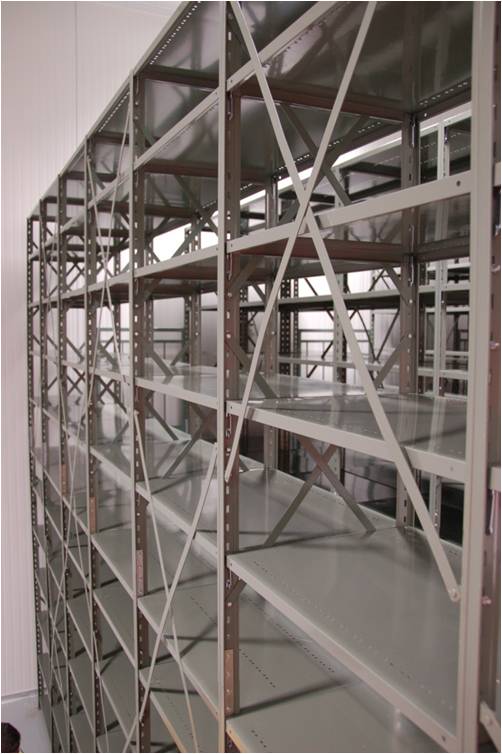

Metalware’s Interlok No-Bolt shelving was designed with three essential values in mind: Strength, economy & Efficiency. It is among the most rigid in the industry. Due to the No-Bolt system, it is installed effortlessly and can be easily re-arranged to accommodate any needed changes in the future.

Metalware shelving is produced in 18-gauge cold-rolled steel. Shelves are made of double-bends on all four sides, complete with closed corners. The uprights are made of 16 gauge hot-rolled steel and are pre-punched, roll-formed, welded and cut to length in on continuous operation.



  Metalware Interlok No-Bolt steel shelving is made from the following material:

Shelf: 18 guage, cold-rolled furniture-grade steel. Double formed on all four sides. Corners are closed with double thickness steel forming a no-slip notch for the shelf clip.

Shelf Clip: 12-gauge compression type; cadmium plated.

“T” Posts: 1 1/2″ x 2″ x 1/8″ double-formed steel in a “T” style with a smooth, imperforated face.

Closed End Panel Assembly: Consists fo two “T” posts welded to a cold-rolled steel side panel to form a single unit providing greater strength and easier handling.

Back Panels: Cold-rolled steel panel that attaches to uprights with cadmium-plated back clips.

Base Plates: Formed on top and bottom to provide support for the bottom shelf in addition to closing the space under the shelf.

Shelf Reinforcements: 1″ x 12 GA. steel, factory installed in the front and rear flange of the shelf. Provides approximately 200 lbs. of additional shelf capacity.

Finish: All components are prepared for painting by being cleaned, iron phosphatised and rinsed. High-grade alkyd enamel is then electro statically applied and backed at 325 degrees to provide a hard, long-wearing, furniture-grade finish.

Capacities differ between shelf sizes.
